First remove the trim cover.
The trim is removed by lifting the rear and unhooking the front.
|
|
|

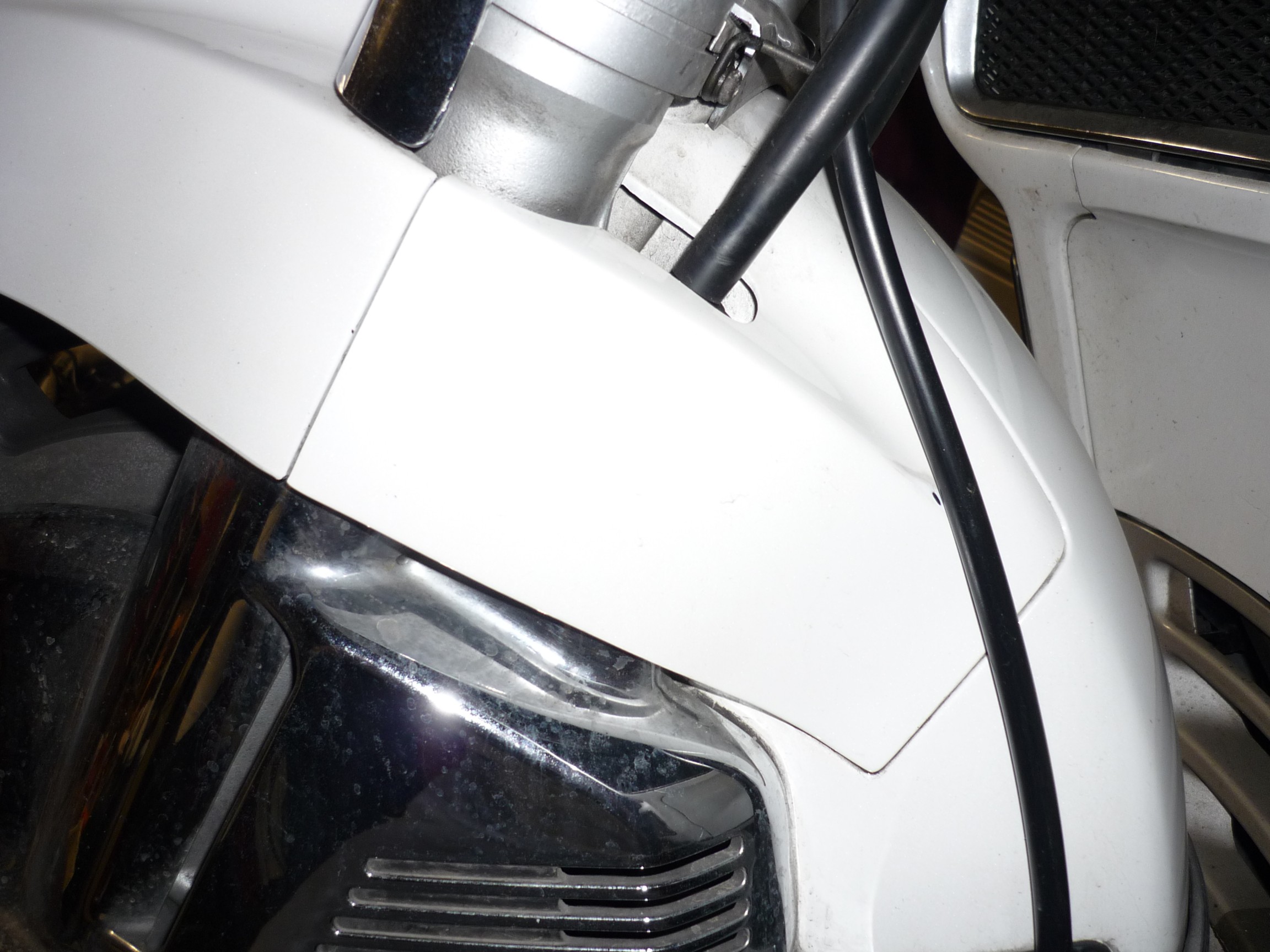

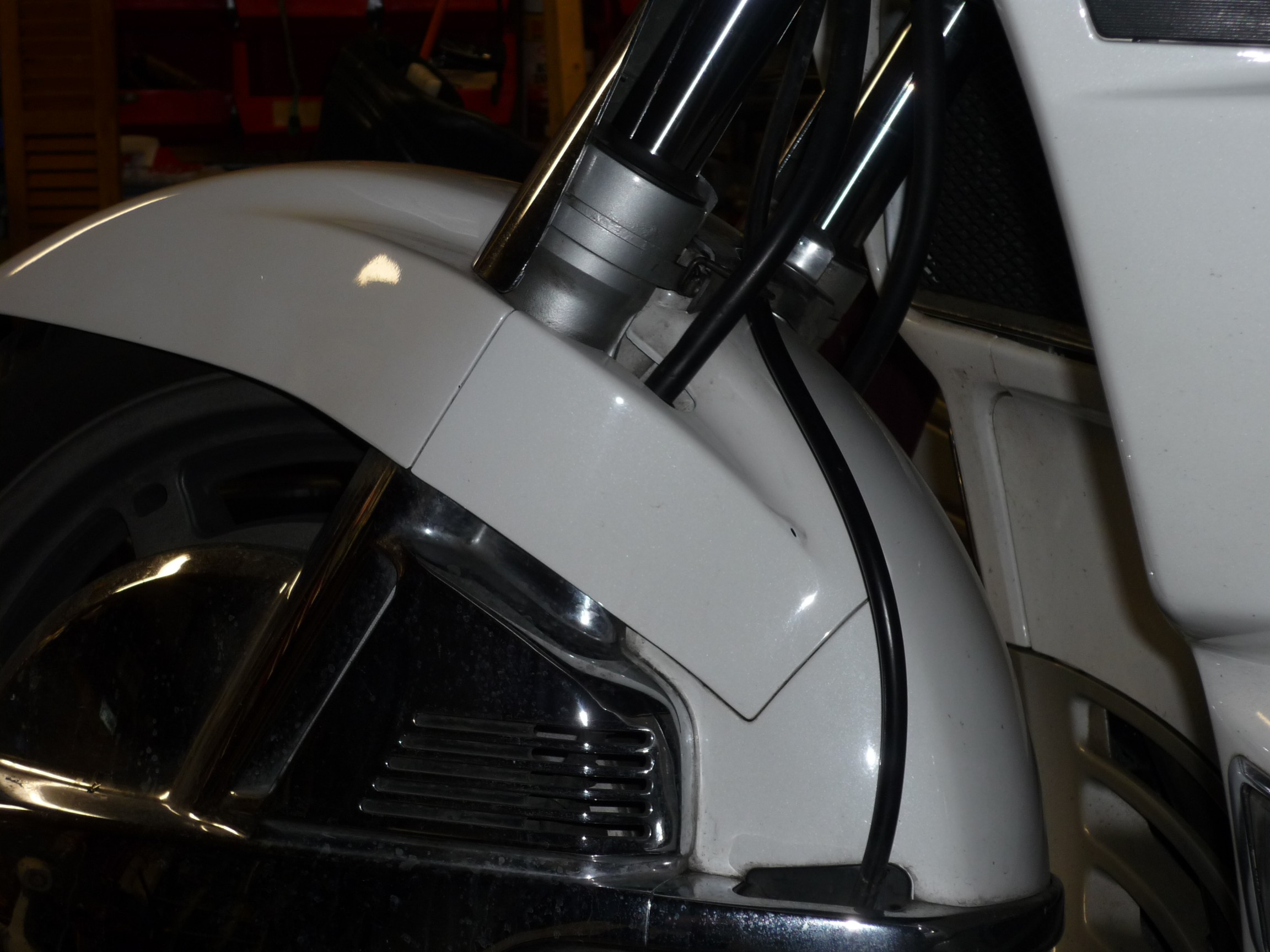

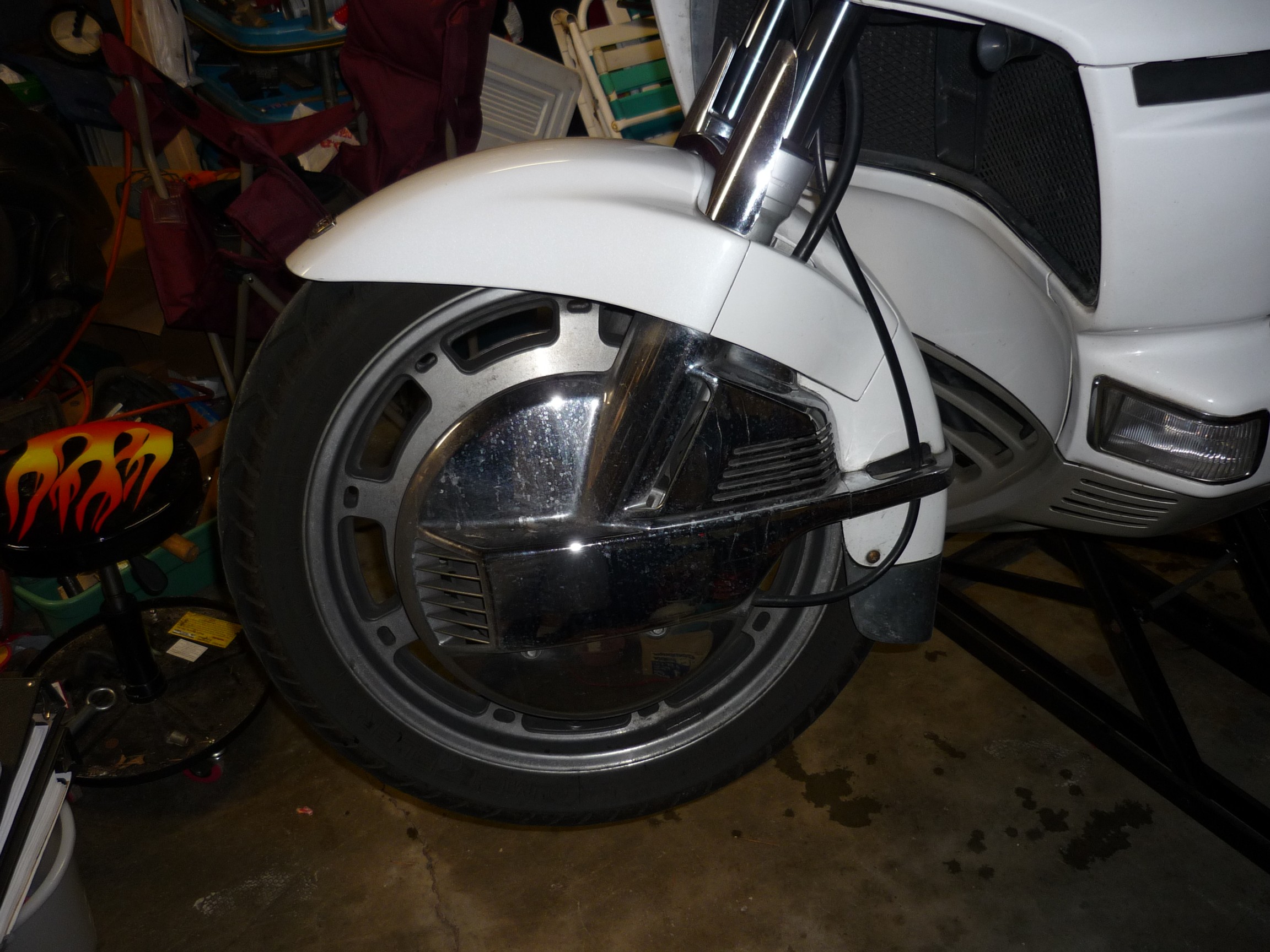

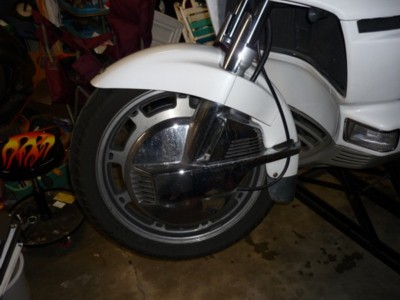

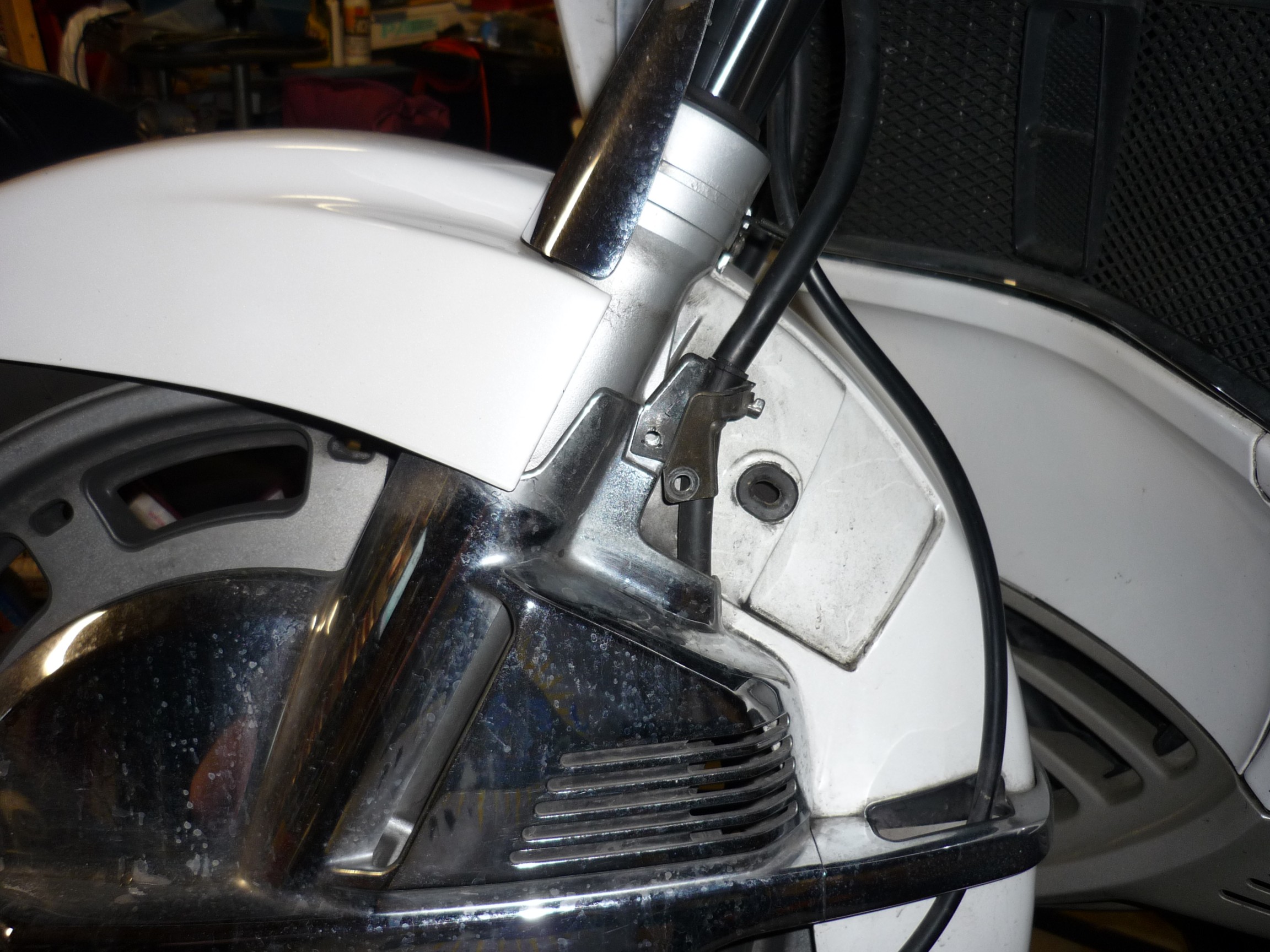

View from left side. | Close-up of left trim cover. |
|
|
|

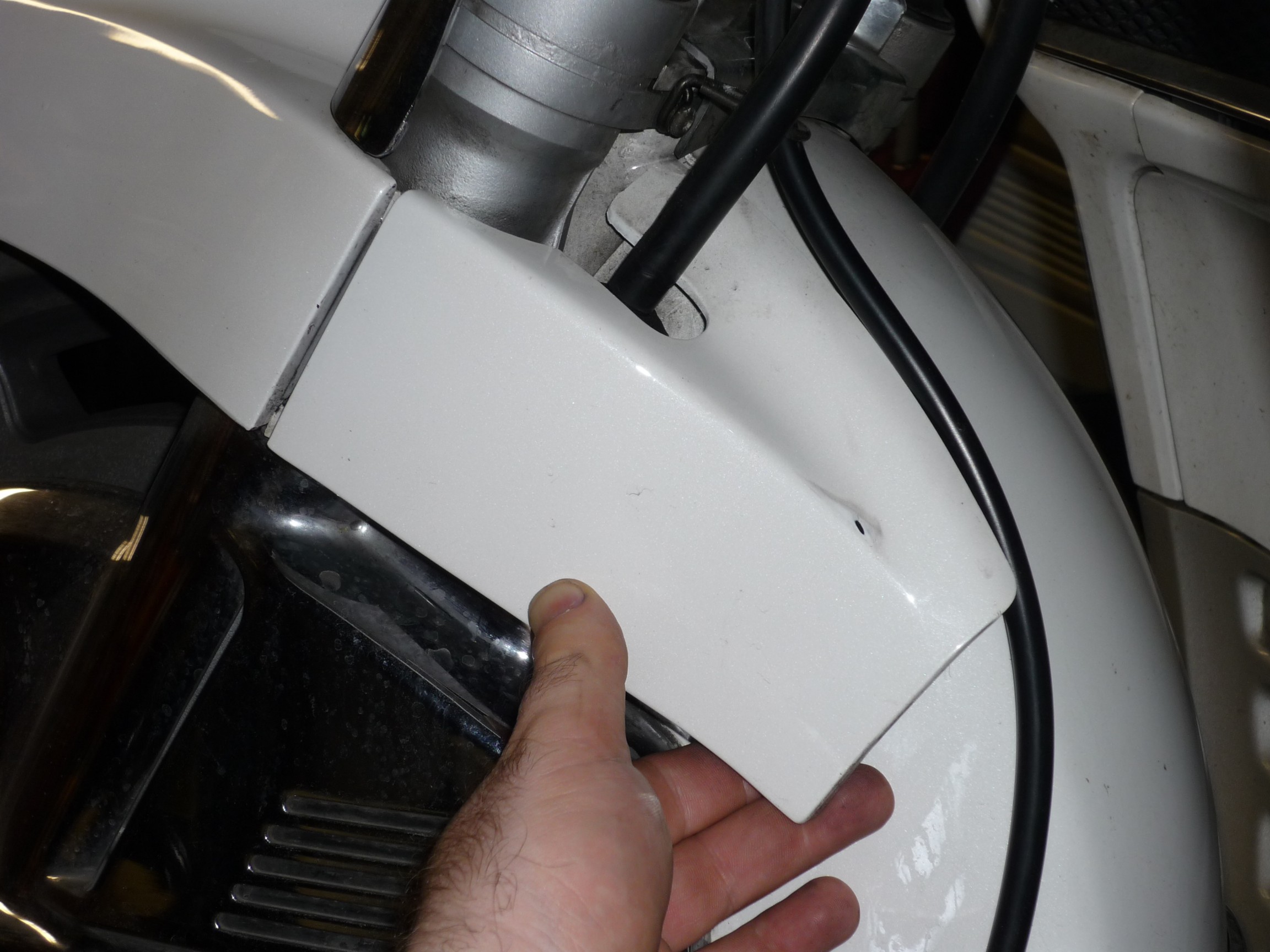

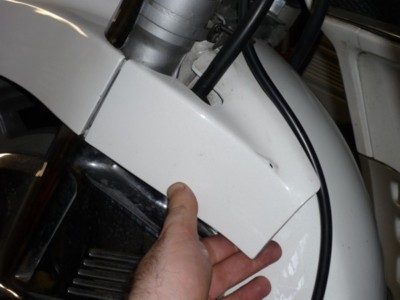

Rear edge lifted. | Lift from rear to work out hooks at front. |
|
|

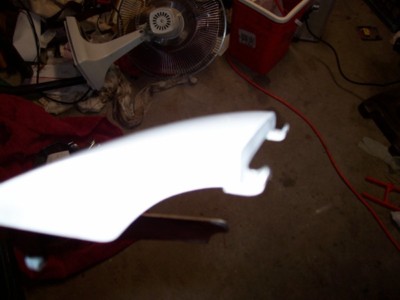

See the hooks on front edge. |

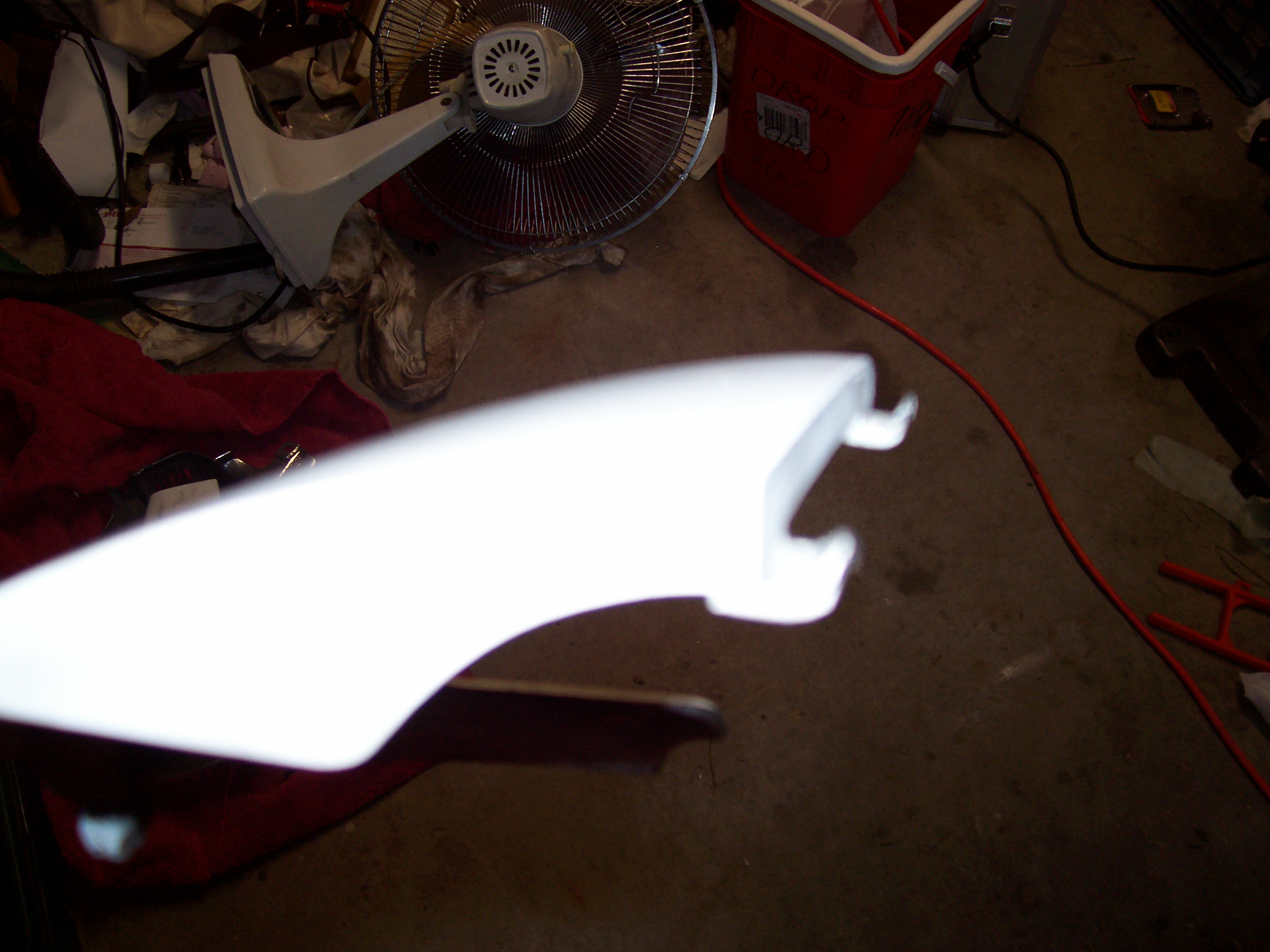

Another view of hooks. Be careful, these break easily. |
|

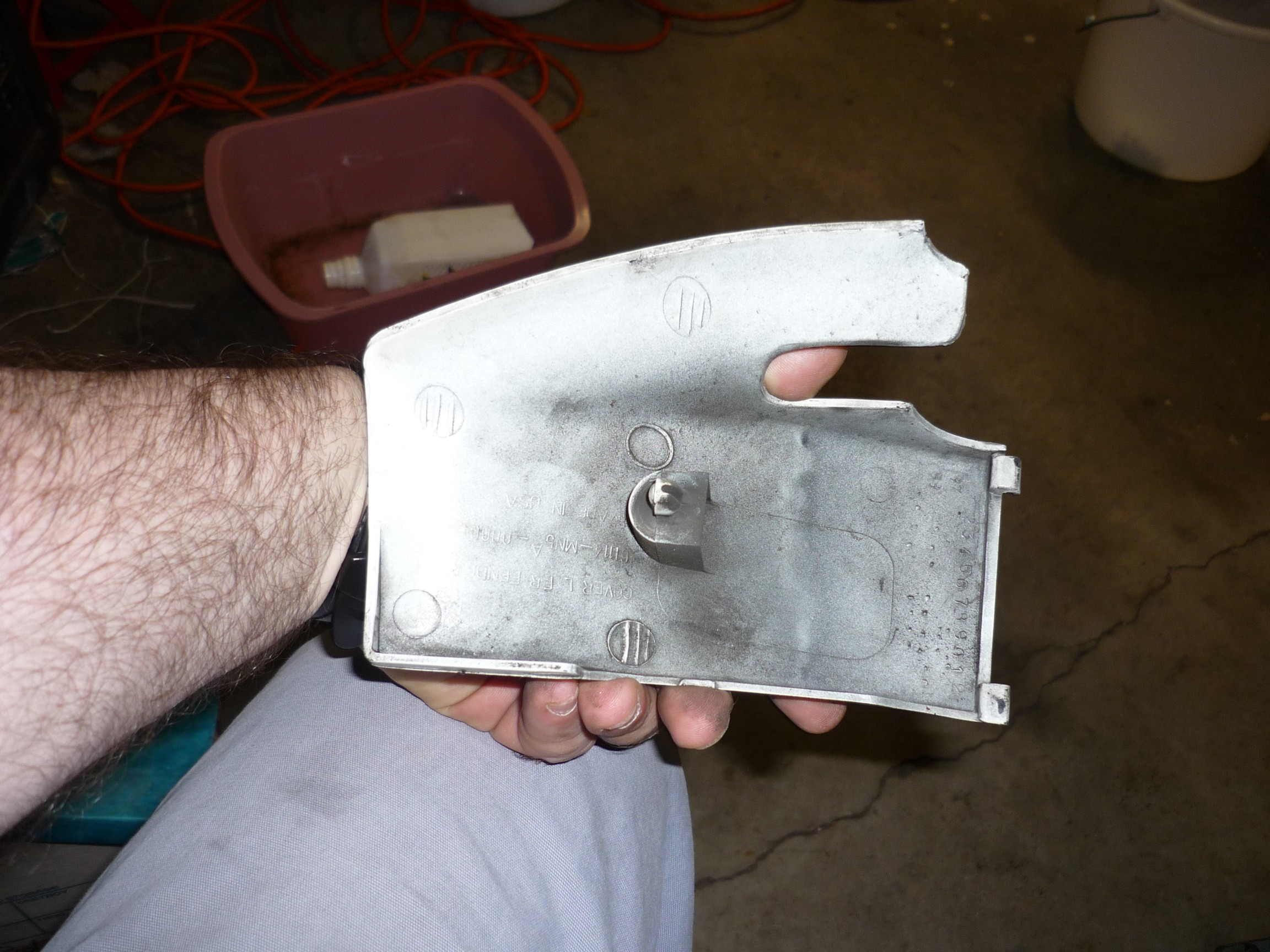

This is the back side of the trim cover. |
|
|

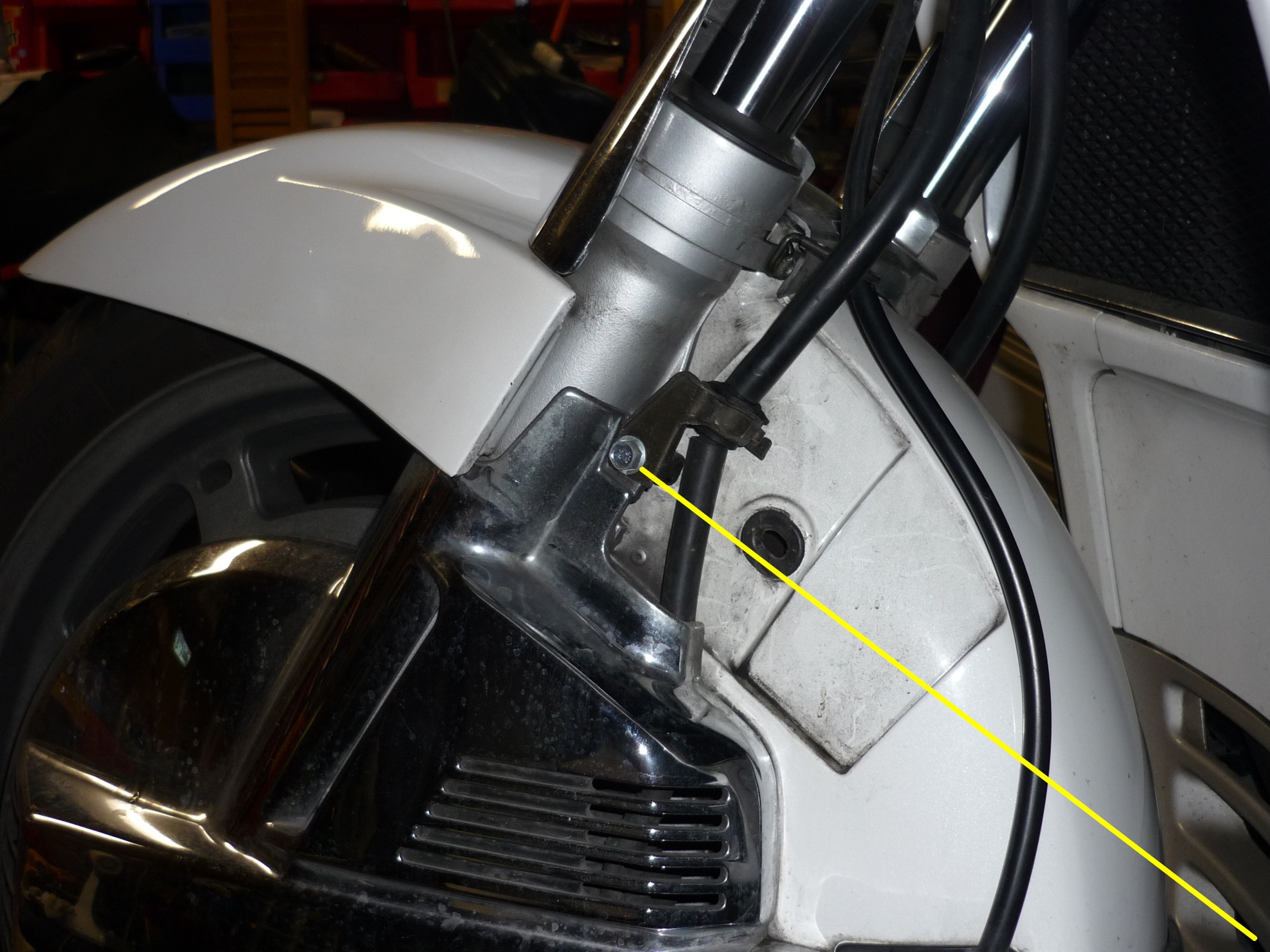

Remove this bolt. |
Then remove this clamp. It is a two piece clamp. |
|

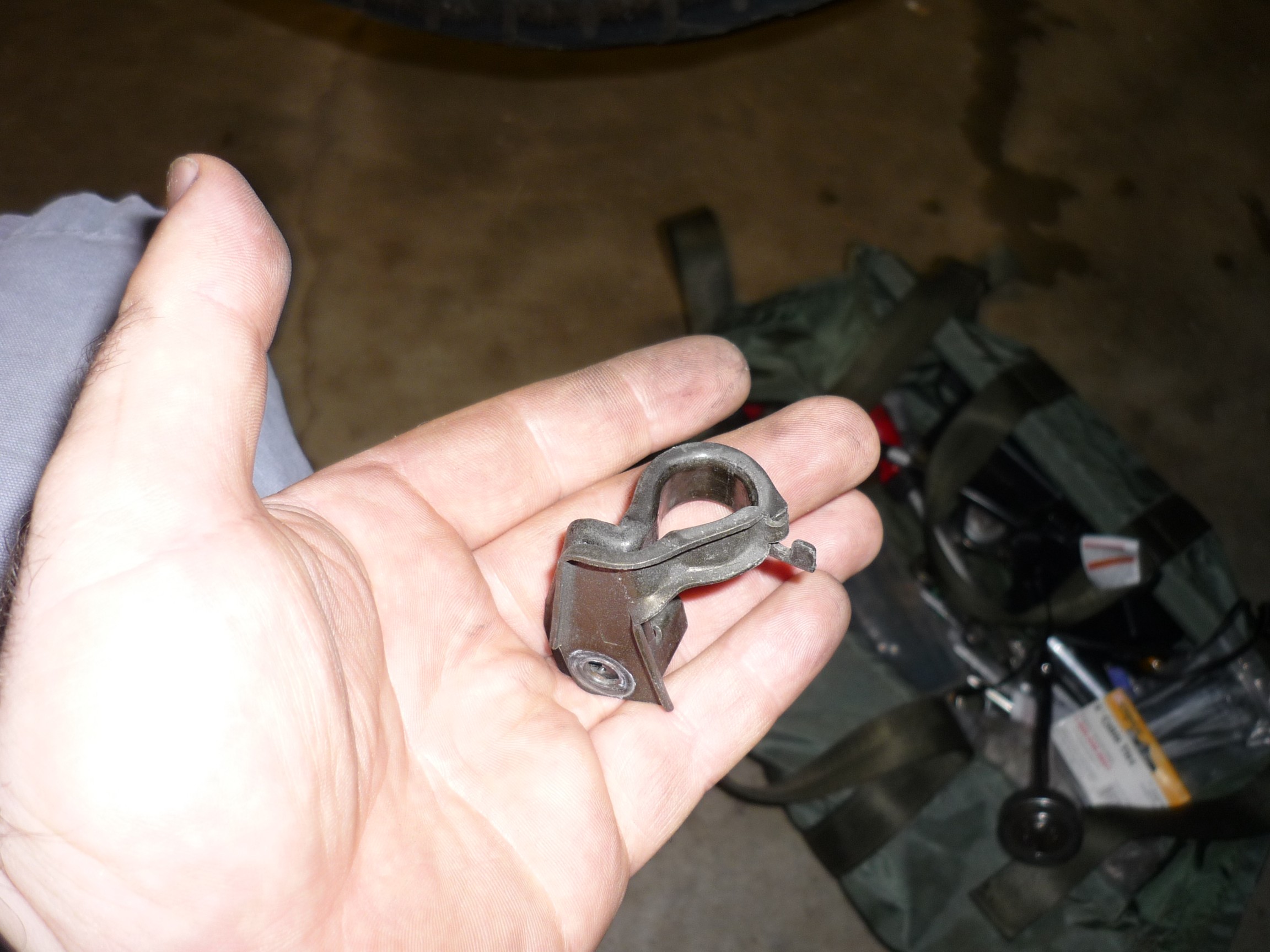

This is how the clamp goes together. |
|
|

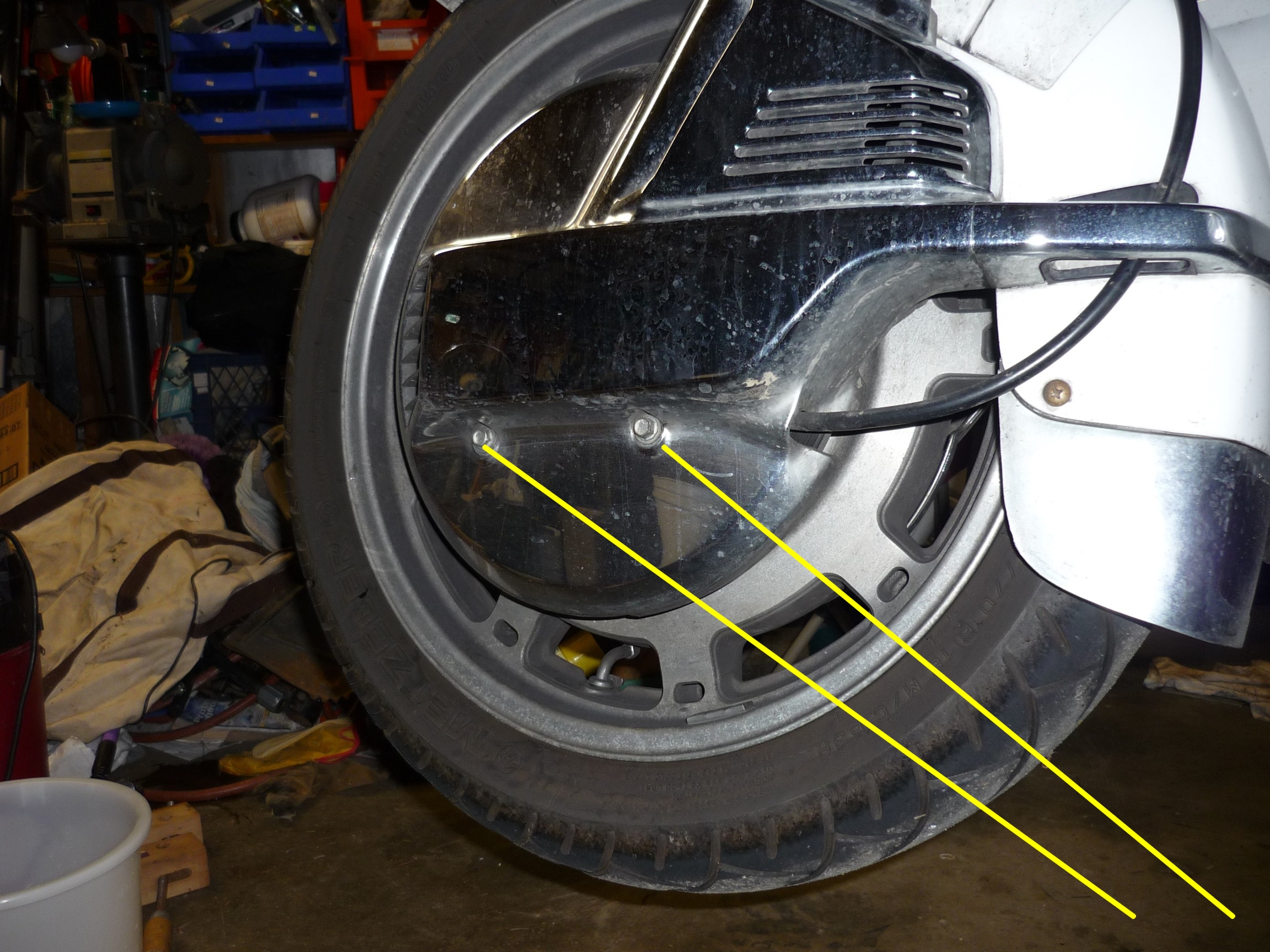

Remove these two bolts. |

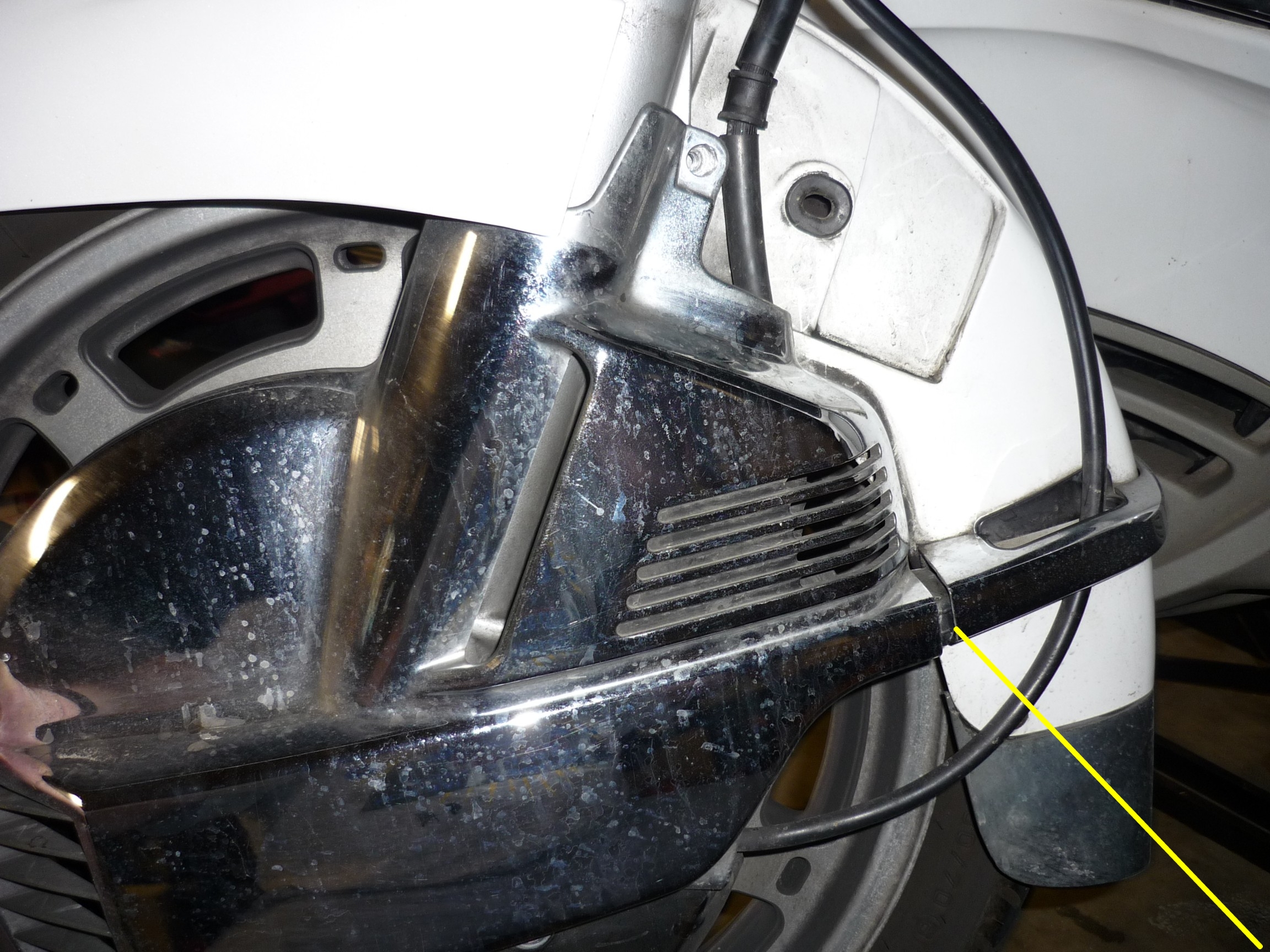

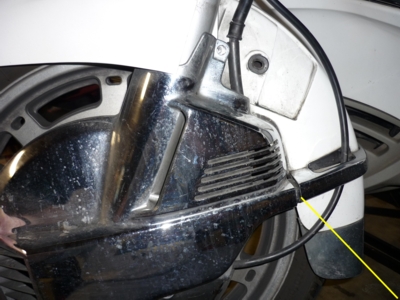

Note the rear edge of the cover slides out. Work the cover out, forward and down. |
